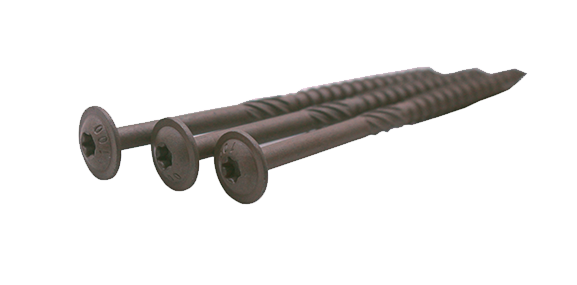

Performance Structural Wafer Head Screws
These specialist structural screws have a Torx Wafer Head for improved clamping and a low profile finish. They are finished in a natural brown ACQ corrosion resistant coating and have the benefit of a milling thread, partially serrated thread and a type 17 cut point.
Code | Name | Size | Per Pack | Per Outer | |
PWP60STRWAF10 | 60x6.7mm Perf Wafer Structural Screw (10) | 6.7 x 60mm | 10 | 10 | |
PWP80STRWAF10 | 80x6.7mm Perf Wafer Structural Screw (10) | 6.7 x 80mm | 10 | 10 | |
PWP100STRWAF10 | 100x6.7mm Perf Wafer Structural Screw (10) | 6.7 x 100mm | 10 | 10 | |
PWP125STRWAF10 | 125x6.7mm Perf Wafer Structural Screw (10) | 6.7 x 125mm | 10 | 10 | |
PWP150STRWAF10 | 150x6.7mm Perf Wafer Structural Screw (10) | 6.7 x 150mm | 10 | 10 | |
PWP175STRWAF10 | 175x6.7mm Perf Wafer Structural Screw (10) | 6.7 x 175mm | 10 | 10 | |
PWP2006STRWAF10 | 200x6.7mm Perf Wafer Structural Screw (10) | 6.7 x 200mm | 10 | 10 | |
PWP200STRWAF10 | 200x8.0mm Perf Wafer Structural Screw (10) | 8.0 x 200mm | 10 | 10 | |
PWP220STRWAF5 | 220x8.0mm Perf Wafer Structural Screw (5) | 8.0 x 220mm | 5 | 10 | |
PWP240STRWAF5 | 240x8.0mm Perf Wafer Structural Screw (5) | 8.0 x 240mm | 5 | 10 | |
PWP260STRWAF5 | 260x8.0mm Perf Wafer Structural Screw (5) | 8.0 x 260mm | 5 | 10 | |
PWP280STRWAF5 | 280x8.0mm Perf Wafer Structural Screw (5) | 8.0 x 280mm | 5 | 10 | |
PWP300STRWAF5 | 300x8.0mm Perf Wafer Structural Screw (5) | 8.0 x 300mm | 5 | 10 | |
PWP320STRWAF5 | 320x8.0mm Perf Wafer Structural Screw (5) | 8.0 x 320mm | 5 | 10 | |
PWP340STRWAF5 | 340x8.0mm Perf Wafer Structural Screw (5) | 8.0 x 340mm | 5 | 10 | |
PWP360STRWAF2 | 360x8.0mm Perf Wafer Structural Screw (2) | 8.0 x 360mm | 2 | 10 | |
PWP400STRWAF2 | 400x8.0mm Perf Wafer Structural Screw (2) | 8.0 x 400mm | 2 | 10 |
