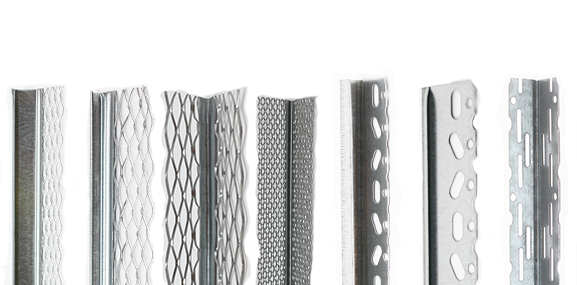

Angle Bead & Mesh

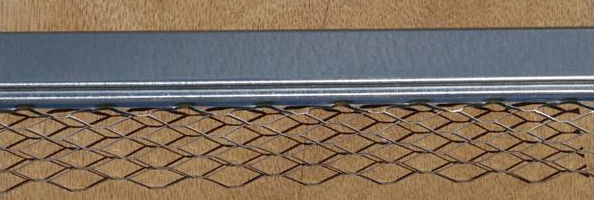

Standard Angle Bead

This is used to provide a true, straight corner which protects and reinforces a 2 or 3 coat plaster or render application in its most vulnerable area. Alternative names include: Float, Render, Coin………

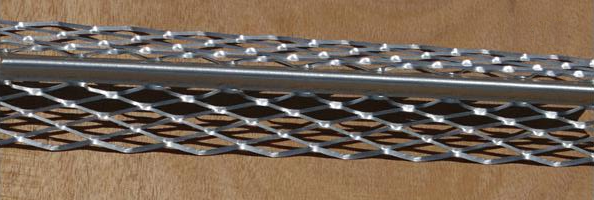

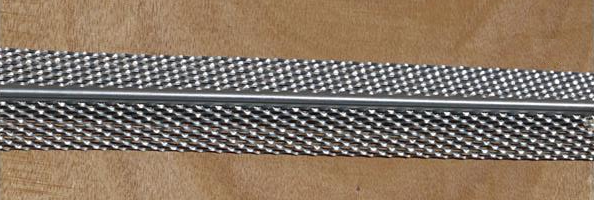

Mini Mesh Bead

This is used to reinforce and protect one-coat finish of plaster on corners at its weakest point on internal walls and plasterboard. The mini mesh bead has a greater area of expanded metal therefore gives a better mechanical key.

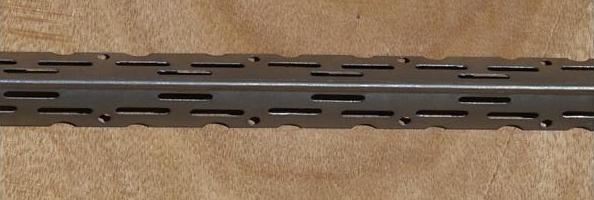

Thin Coat Angle Bead – Perforated

This is used to reinforce and protect one-coat finish of plaster on corners and reveals at its weakest points on internal walls and plasterboard. Alternative names include: Razor, Board Bead, Drywall ……

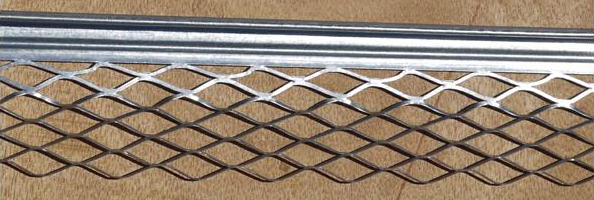

Plaster Stop Bead 10mm/13mm

This is used to provide a precise straight clean finish and also to reinforce 2 or 3 coat plaster or render on its edge.

Thin Coat Plaster Stop Bead 3mm

This drywall arch stop bead is used to provide a precise straight clean finish and also reinforce one-coat plaster on its edge. Can also be used for slight curves in plaster finish because of its slightly malleable condition.

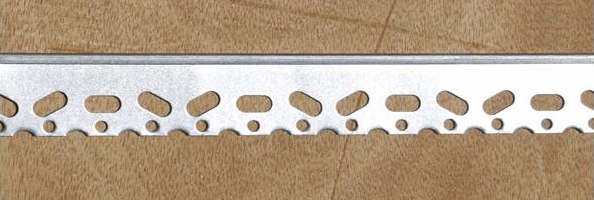

Render Stop (Bellcast) Bead

This is predominantly used to form a neat bell shaped edge at the bottom of an external render finish, thus protecting the edge and acting as a run-off for when rainfall occurs. Galvanised (internal use) and stainless steel (external use) External Render Stop Beads for use on traditional wet 2 / 3 coat plaster application. Alternative names include: ERS, Drip Bead, Bell Bead ……..

Galvanised EML Sheets

Expanded Metal Lathing (EML) is mainly produced as a key for plaster when applied on suspended ceilings and walls. It is also suitable for encasing steel columns and beams, assisting in the protection from fire.

Code Name Size Packaging
M24STDAB 2.4m Std Angle Bead (50) 2.4 metre Box of 50
M30STDAB 3.0m Std Angle Bead (50) 3.0 metre Box of 50

M24MM 2.4m Mini Mesh (50) 2.4 metre Box of 50
M30MM 3.0m Mini Mesh (50) 3.0 metre Box of 50

M24TCAB 2.4m Thin Coat Angle Bead (Perforated) (50) 2.4 metre Box of 50
M30TCAB 3.0m Thin Coat Angle Bead (Perforated) (50) 3.0 metre Box of 50

M24PSB10 2.4m Plaster Stop Bead 10mm (50) 2.4 metre Box of 50
M30PSB10 3.0m Plaster Stop Bead 10mm (50) 3.0 metre Box of 50
M24PSB13 2.4m Plaster Stop Bead 13mm (50) 2.4 metre Box of 50
M30PSB13 3.0m Plaster Stop Bead 13mm (50) 3.0 metre Box of 50

M24TCPSB 2.4m Thin Coat Plaster Stop Bead 3mm (50) 2.4 metre Box of 50
M30TCPSB 3.0m Thin Coat Plaster Stop Bead 3mm (50) 3.0 metre Box of 50

M24ERS 2.4m Render Stop (Bell Cast) (50) 2.4 metre Box of 50
M30ERS 3.0m Render Stop (Bell Cast) (50) 3.0 metre Box of 50

MEML Galv'd EML 8x2'3 8' x 2' 3" Bundle of 10

ZSCRIM 90mx48mm Std Width Scrim Tape Box of 24
ZSCRIM90100 Scrim Tape, 90m x 100mm Box of 12

M30EDGE95B 3.0m Plasterboard Edge Bead 9.5mm (50) 3.0 meter Box of 50
M30EDGE125B 3.0m Plasterboard Edge Bead 12.5mm (50) 3.0 meter Box of 50
M30EDGE15B 3.0m Plasterboard Edge Bead 15mm (50) 3.0 meter Box of 50
